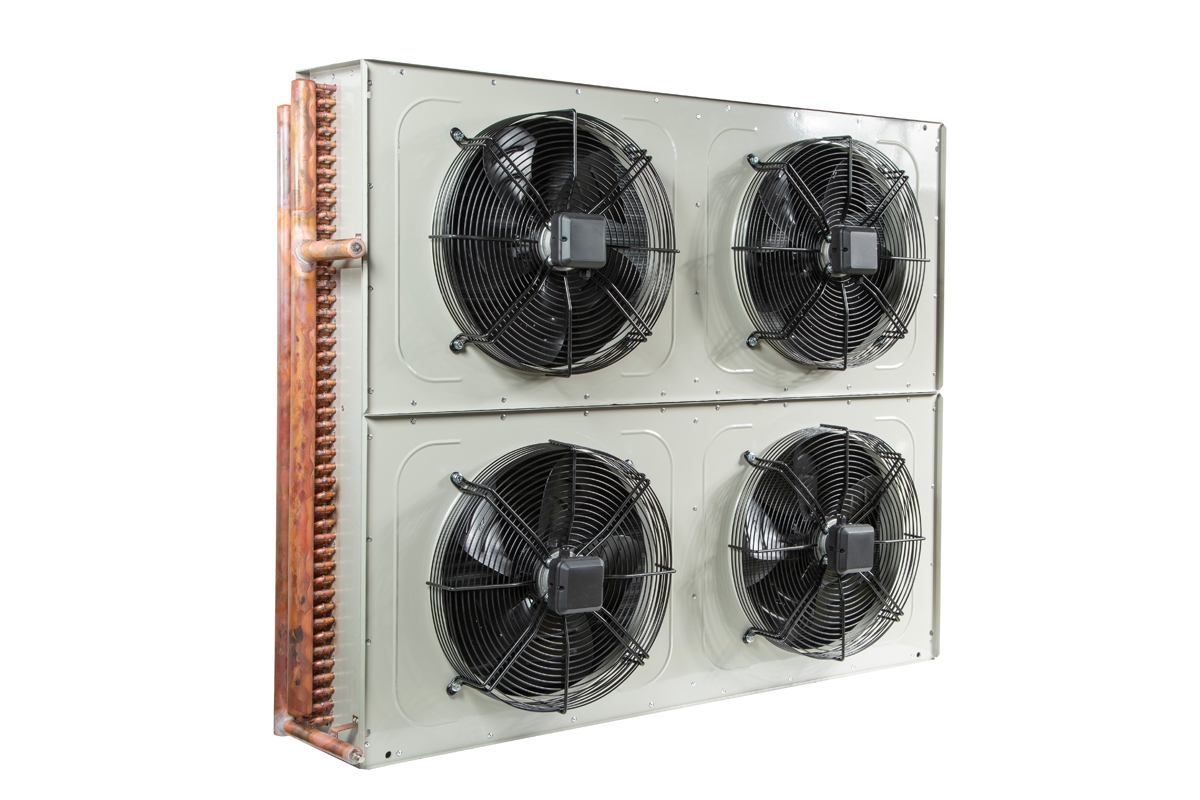

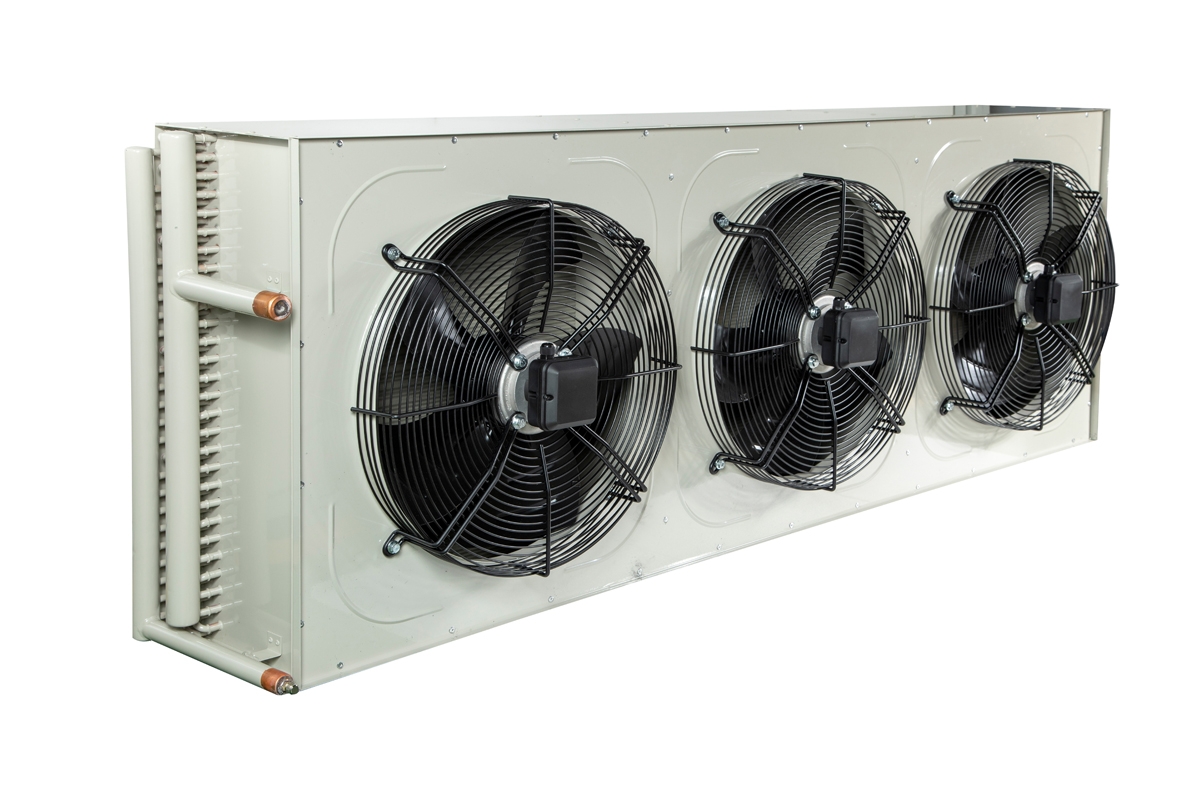

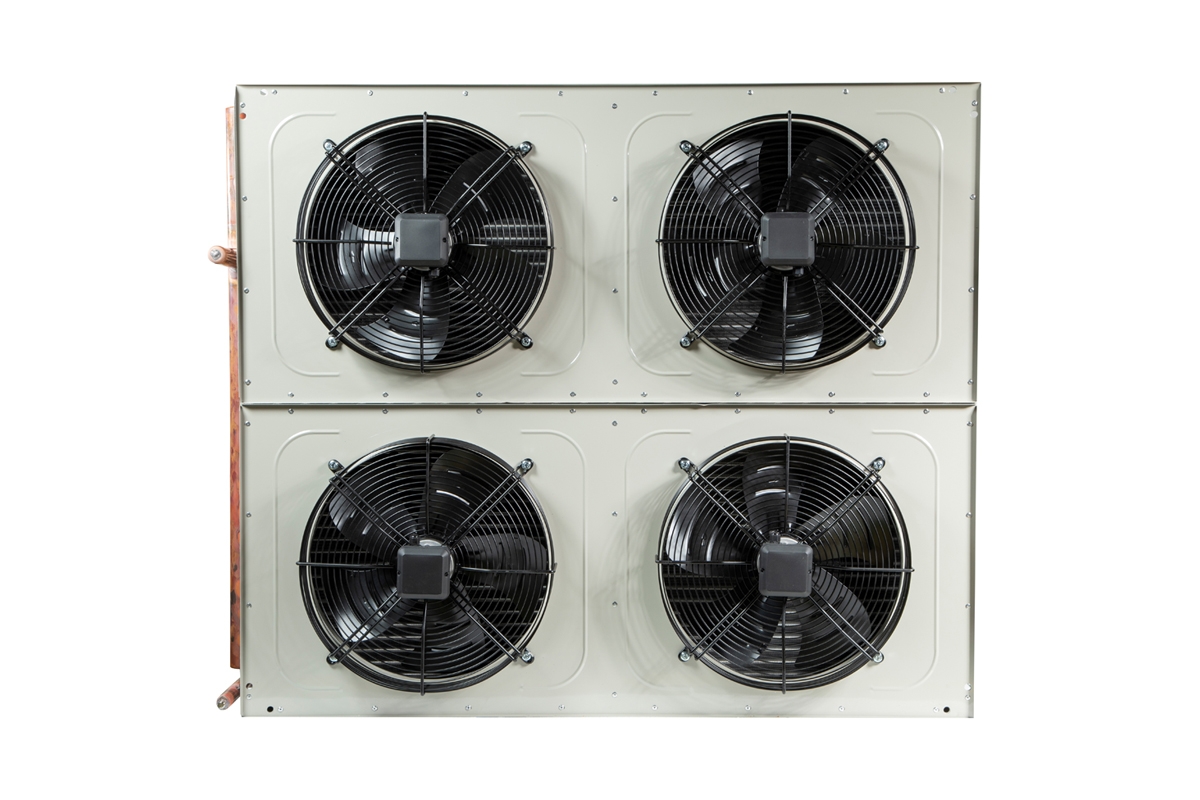

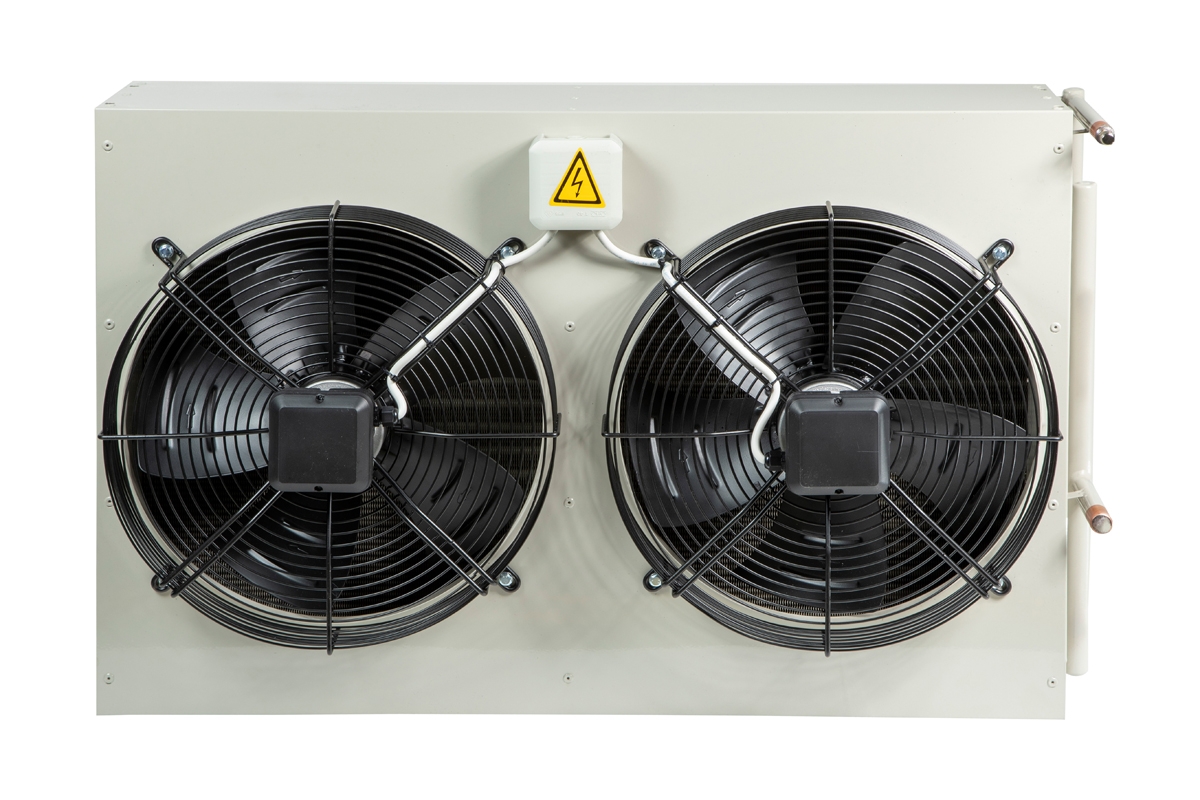

MKS Series Commercial Type Condensers

All range of Gemak Condensers', are suitable to work at external environmental conditions, have been designed to be used at air conditioning facilities with Freon Gassed Cooling.

» 5/16" Copper Tube (staggered) and Aluminium Fin (corrugated) are used in MKS Series Condensers.

» Fin Spacing; is in between 2,1 mm-2,5 mm.

» Casing; galvanized steel is used which is painted with electrostatic powder dye.

» Products are tested with Nitrogen Gas under 25 BAR pressure; will be delivered with low pressure Nitrogen.

» As a Standard; production is done without fan; EBM or equivalent axial fans are used upon on request. Fan dia's in between.; Ø300mm – Ø450mm (1400 rpm monophaze)

» Capacities of the catalogue is acceptable if +30°C ambient temperature, 45°C condensation Temperature (DT=15) and R404A as a fluid.

» For the diiferent gasses and conditions; correction factors specified in the tables are used.

(check, condenser technical datas)
